About Us
Who Are We?
Our full-service machine shop located in New Berlin, Wisconsin, serves businesses in Southeastern Wisconsin, Northern Illinois and nationwide. We consistently deliver expertly crafted, quality parts-machined, finished, and assembled. As our customer’s “first to call” and “one-stop” vendor, DESCO Machining’s single-source approach sets us apart from our competitors. Utilizing state-of-the-art CNC machines coupled with assembly, welding, riveting, buffing, packaging, and shipping allows us to handle the complete manufacturing of your product. By providing these value-added services, we save you time, money and a level of quality control you just can’t get when you outsource with multiple vendors.
Our highly qualified staff and technology-rich environment enable us to provide custom solutions that fit your individual needs. As a manufacturer of our own products, our commitment is to provide quality parts and “Red Carpet Treatment” customer service – it’s our way of doing business.
We specialize in part quantities from 20 to 10,000 based on our customer’s orders. Consistently following quality steps of, first piece, in-process and final inspection ensures your part is made in accordance with your specifications, right from the beginning. Adherence to your quality standards is not just a guideline-it is an “expectation“.
Capabilities
Milling and Turning
Located in New Berlin, Wisconsin, serving businesses in Wisconsin, Northern Illinois and nationwide. DESCO Machining’s entire operation is based on using the latest machine technology and the most skilled people; thereby providing your company with the very best in process design, manufacturing, and quality.

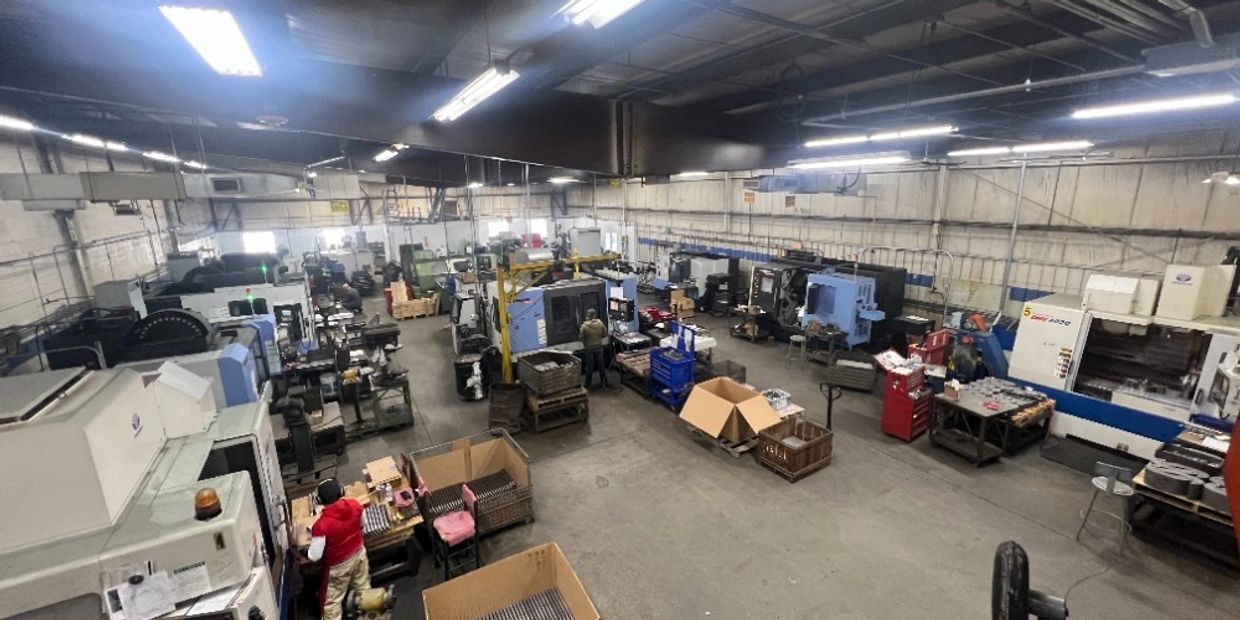

Our well-equipped, climate controlled facility enables us to handle large production runs down to small quantities. Tolerances of +/-0.0005 are achievable, with typical customer requirements ranging from +/-0.001 to +/-0.010. By utilizing EdgeCam and BobCad software, we increase efficiency and part accuracy to ensure your product is manufactured to print or CAD file in accordance with your specifications. DESCO Machining’s CNC turning centers provide our customers with custom capabilities needed for their products by utilizing the latest methods of C-axis milling, live tooling and bar feeding.
“Red Carpet Treatment” Customer Service
Custom manufactured parts to print
On-Time Delivery
Fast Turnaround Times
Utilize EdgeCam and BobCad Software
Quick Price Quotes
Turnkey Solutions
Our shop also has manual machining capability for single part or prototype manufacture.
DESCO Machining offers additional in house services:
Assembly
Buffing & Polishing
Kitting & Packaging
Orbital Riveting
Resistance Welding
Saw Cutting
Shipping
Spot Welding
Soldering (Non-Electronic) and Brazing
Welding (light duty)
Value Added (Outsourced) Processes:
Plating
Balancing
Anodizing
Heat Treating
Grinding
Broaching
Honing
Painting
DESCO Machining has a broad range of experience with a variety of materials. Small Brass pieces to large Steel parts can made in our shop. Metals we commonly work with include: Aluminum, Aluminum Bronze Alloy, Beryllium Copper Alloy, Beryllium Nickel Alloy, Brass (Yellow and Red), Bronze, Copper,
Hardened Steel, Inconel, Nickel, Stainless Steel (all grades), Tin, and Tool Steels (H13,S7,P20,D2,O1,A2, M2).
We also machine plastics: Delrin, Lexan, Nylon.
CNC Machining
About
DESCO Machining’s CNC machining centers provide our customers with a variety of capabilities. Our shop has machines with bar feed, live tooling, and dual spindle capability.
Equipment
Milling
Daewoo DMV – 400 CNC Vertical Mill
Range: X- 22.1” Y- 15.86” Z- 22.92”
10,000 rpm spindle
30 tool changer
Indexable pallets
15 horsepower spindle
Doosan VC 430 CNC Vertical Mill
Range: X- 22” Y- 16.7” Z- 22.4”
10,000 rpm spindle
30 tool changer
Indexable pallets
24.8 horsepower spindle
Daewoo DMV 4020 CNC Vertical Mill
Range: X- 40” Y- 20” Z- 24.6”
8,000 rpm spindle
24 Tool changer
20 horsepower spindle
Doosan MV 4020 CNC Vertical Mill
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,181 IPM
Rapid Rate Y Axis: 1,181 IPM
Rapid Rate Z Axis: 1,181 IPM
Max Table Load: 1,800 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Spindle Nose to Table (Min.- Max.): 5.87? – 26.3?
Max Tool Weight: 17.6 lbs
Max Tool Length: 11.8?
Max Tool Dia.: 5.9?
Tool Change Time: 1.5 second
Table Size: 47" x 20"
Weight: 16,500 LBS
Doosan DNM 500 II CNC Vertical Mill
Table Size: 47.2" x 21.2"
Max Table Load: 1,764 LBS
X Axis Travel: 40"
Y Axis Travel: 21.2"
Z Axis Travel: 21.01"
Spindle Speed: 12,000 RPM
Spindle Motor: 20 HP
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Fanuc 32-iMB CNC Control
Tsudakoma TN-161 4th and 5-Axis Trunnion Table (160mm)
Prepped for Renishaw RMP-40 Probe System
280 PSI Thru Spindle Coolant
Programmable Coolant
Chip Conveyor with Auger System
Remote Jog Handle
USB and SD Card
Spindle Orientation

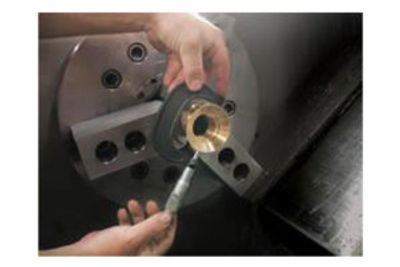

Turning
Daewoo Puma 230 CNC Turning Center
Range: X- 13.8" Z- 22.92"
4,500 RPM Spindle
10.0" Chuck
12 Station turret
Programmable tailstock
Parts catcher
2.6" Spindle through hole
20.0" Swing
20 Horsepower spindle
Daewoo 240mb CNC Turning Center
Range: X- 14.435" Z- 25.59"
00 RPM Spindle
10.0" Chuck
12 Station turret
Programmable tailstock
Parts catcher
2.55" Spindle through hole
21.7" Swing
25 Horsepower spindle
LNS 6' Magazine bar feed
Live tooling with 5,000 RPM
"C" Axis machining
Doosan Lynx 300 M Turning Center
Bar Capacity: 4"
Chuck Size: 12"
Spindle Speed: 2,800 RPM
Spindle Motor: 30 HP
X Axis Travel: 11.1"
Z Axis Travel: 52.4"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 13.98"
Max Swing: 23.2"
Dimensions: 157" x 85" x 82"
Weight: 15,200 LBS
DOOSAN TT 1800 SY Turning Center
Bar Capacity: 2.625"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 6.5"
Z Axis Travel: 31.5"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 9.1"
Max Turning Length: 9.1"
Max Swing: 9.1"
TURRET:
Turret Configuration (Upper + Lower): 24 + 24 (48 Total Stations)
O.D Tool Size: 0.8" x 0.8"
Maximum I.D. Tool Size: 1.3"
Turret Indexing Time: 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM
SUB & MAIN SPINDLE:
Spindle Speed: 5000 RPM
Spindle Motor (30 min / Cont): 29.5 HP / 20.1 HP
Maximum Spindle Torque: 153.5 Ft-Lbs
Spindle Nose: A2 #6
Spindle Bearing Diameter: 4.3"
Spindle Inner Diameter: 3.0"
C-Axis Indexing: 360° in .001° increments
Weight: 17,196 LBS
Okuma LB-25 CNC Turning Center
Range: X- 14.435" Z-25.59"
3.600 RPM Spindle
15.0" Chuck
Programmable tailstock
3.15" Spindle through hole
25.0" Swing
20 Horsepower spindle
Machinery Axis/ Min/ Max Length, Width, Height, Diameter, Tolerance
Machinery Axis:
3
4
Live Tooling
"C" Axis
Min/ Max Length:40"
Min/ Max Width: 20'
Min/ Max Height: 15"
Min/ Max Diameter: 20"
Tolerance: ± .0005 inch (tighter tolerances may be achieved with grinding)
Production Volume
1 to 50,000
Sawing Services
Saw Cutting
DESCO Machining offers cutting services on our Cosen C-260NC Horizontal Band Saw. You can send us your material to cut, or we can order the material and cut it to your specifications.
Min/ Max Length, Width, Height, Diameter
Min/ Max Length: .500" to 20'
Min/ Max Width: .500" to 9"
Min/ Max Height: .500" to 9"
Min/ Max Diameter: .500" to 11"
Part Weight/ Tolerance
Part Weight: 50lbs
Tolerance: ± 0.010” length

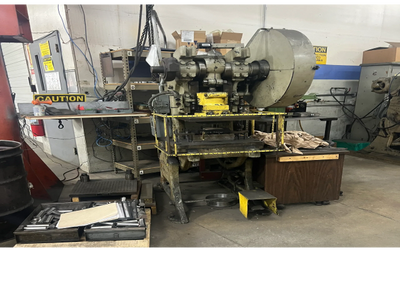

Punch Press
Small part punching and forming
Our shop has two small punch presses, a Longbough - Jordan, and a E W Bliss. We can make parts in light mild Steel, Aluminum, and sheet Brass.
Resistance Welding
About
Spot welding is a common method of joining parts together. Our shop is equipped with Miller and Acro resistance welders.
General Capabilities
Resistance Welding Services
Primary Materials
Steel and Stainless Steel
Min/ Max Length, Width, Height, Diameter
Min/ Max Length: .500" to 36"
Min/ Max Width: .500" to 10"
Min/ Max Height: 1/32" to 2"
Min/ Max Diameter: 1/32" to 2"
Part Weight/ Tolerance
Part Weight: 20lbs
Tolerance: ± 0.015”

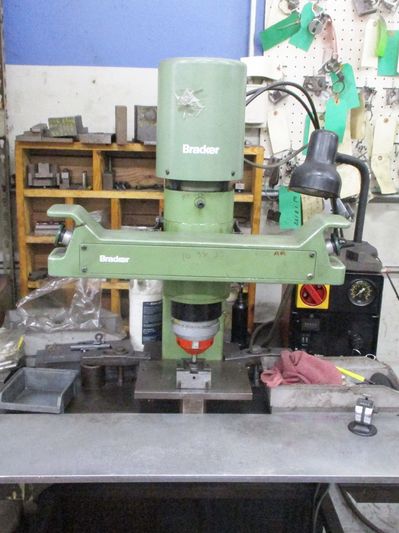

Orbital Riveting
About
This versatile method of joining component parts allows products to be assembled for a variety of industries at a low cost. This value added process allows us to further meet our customers growing needs.
General Capabilities
Orbital Riveting Services
Primary Materials
Steels, Stainless, Alumunum, Brass
Min/ Max Length, Width, Height, Diameter
Min/ Max Length: .1/2" to 36"
Min/ Max Width: 1/8" to 4"
Min/ Max Height: 1/8" to 12"
Min/ Max Diameter: 1/8" to 8"
Part Weight/ Tolerance
Part Weight: 20lbs
Tolerance: ± 0.010”

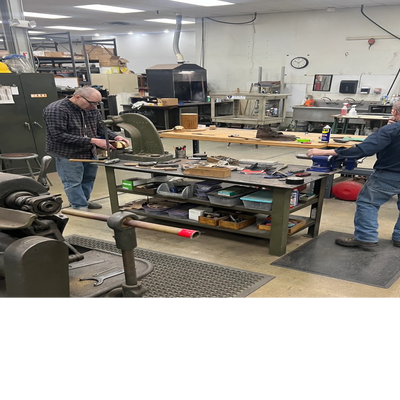

Assembly
About
No matter how small the detail, DESCO Machining can provide you with quality assembly capabilities. Our years of experience in assembling our own products demonstrates our superior level of proficiency with complex components. This value added process allows us to further meet our customers growing needs.
General Capabilities
Assembly Services
Min/ Max Length, Width, Height, Diameter
Min/ Max Length: 1" to 72"
Min/ Max Width: 1" to 72"
Min/ Max Height: 1" 72"
Min/ Max Diameter: .500" to 36"
Part Weight/ Tolerance
Part Weight: 0 to 100lbs
Tolerance: General Assembly Tolerances

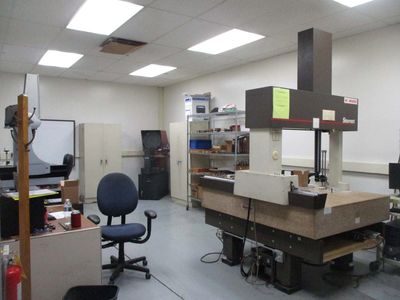

Inspection and Quality Control
Quality Assurance
Customer relationships are built on trust. DESCO Machining is dedicated to maintaining that trust by providing parts and services that meet or exceed customer expectations. A key to accomplishing this is a commitment to quality. Our shop is outfitted with a Sterrett Coordinate Measuring Machine, a Tesa Coordinate Measuring Machine, a Sterrett Comparator, and an array of gauges and measuring devices to assure the parts we make are to customer specifications.
